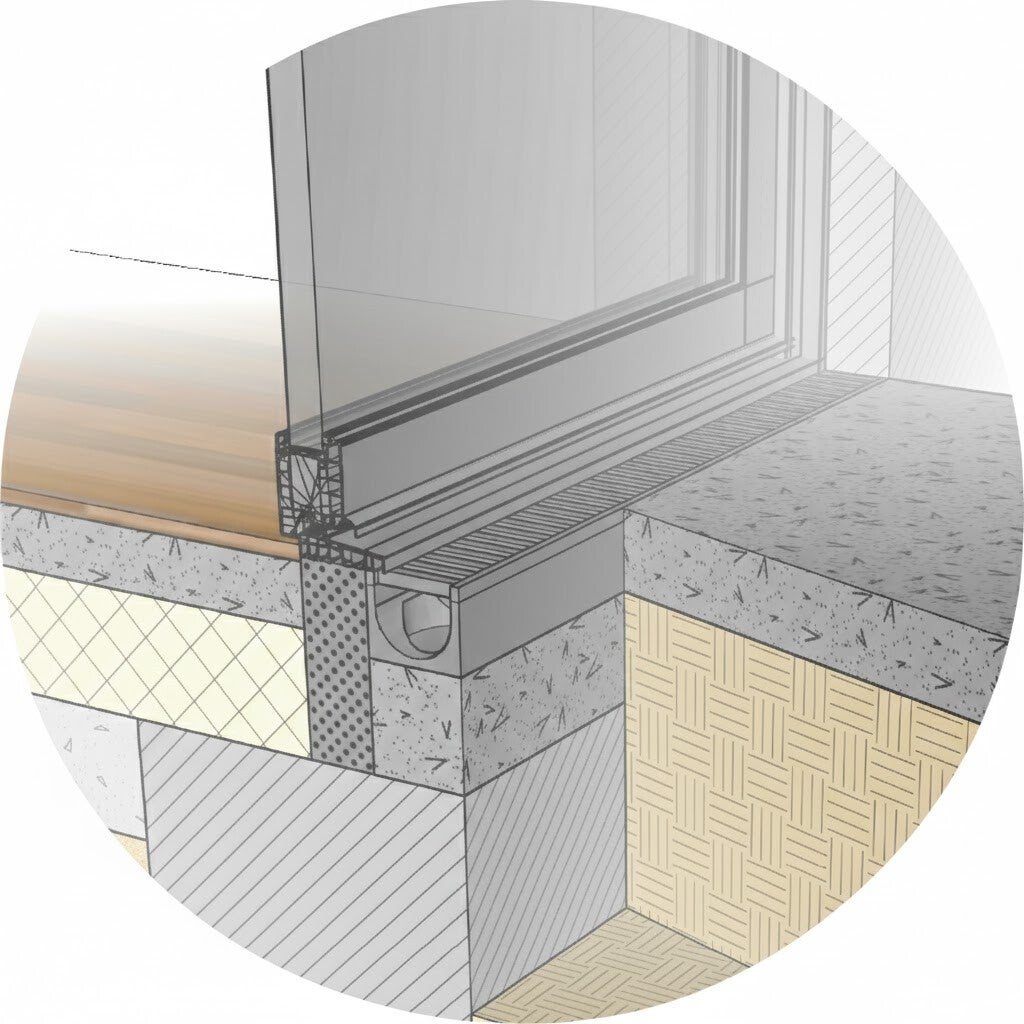

How to Bridge a Cavity Wall below a Door Threshold without creating a Thermal Bridge
Cavity-wall construction creates a particular challenge where a door, sliding door or large glazed element needs to be supported across the cavity.
TRIOTHERM+ Insulated Door Upstands
Structural Support Meets Thermal Insulation
A load-bearing, thermally insulating solution for entrance doors, sliding doors and floor-to-ceiling glazing.
One Component. Two Essential Functions.
TRIOTHERM+ combines structural support with thermal insulation at the critical junction between the door threshold and the building structure.
Load-Bearing Support
A stable, engineered base beneath doors and glazed elements.
Reduced Thermal Bridging
Helps maintain insulation continuity at floor-level connections.
Flexible Installation
Adaptable to different door systems, building methods and threshold heights.
Designed for Modern Building Envelopes
The position of doors and glazing within the building envelope plays an important role in thermal performance. TRIOTHERM+ allows load-bearing threshold support to be integrated with the surrounding insulation, helping designers address thermal bridging without relying on conventional masonry or concrete supports.
Technical Performance & Design
Why Specify a TRIOTHERM+ Door Upstand?
A door threshold must do more than support the frame. It must accommodate structural loads, maintain thermal continuity and integrate with the building's moisture protection strategy.
The Threshold Is a Critical Building Junction
TRIOTHERM+ provides an engineered alternative to conventional masonry or concrete support details, combining load-bearing performance with low thermal conductivity.
Documented Material Performance
0.0374
W/(m·K)
Thermal conductivity
λ10
1,260
kg/dm²
Load-bearing capacity
at max. 2% deformation
≤ 0.5 vol.%
Water absorption after 28 days
of immersion
Key Considerations for Designers
Effective door threshold design requires the coordination of thermal performance, structural support, moisture protection and installation details. TRIOTHERM+ provides a thermally insulating, load-bearing support as part of the overall building envelope design.
01
Thermal Bridge Reduction
Maintain insulation continuity beneath doors and glazing, helping to reduce heat flow through the threshold junction and supporting the building's overall thermal performance.
02
Structural Load Transfer
Transfer vertical loads from door and glazing systems through a properly designed support and fixing arrangement into the building structure.
03
Moisture Protection
Integrate the door upstand with appropriate damp-proof courses (DPC), waterproofing and drainage details to protect the complete threshold connection.
04
System Integration
Coordinate threshold height, door frame position, floor construction and fixing components early in the design process to achieve a practical installation detail.
Structural suitability, load transfer, fixing arrangements and waterproofing must be assessed for each project. Product performance and supporting evidence are available in our Technical Documentation .
